| LOGO! and its Modules |
| |
|
|
|

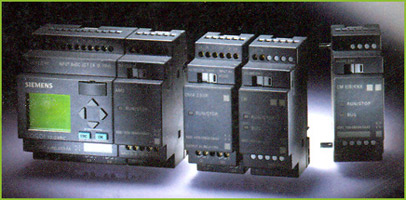

LOGO! Basic
• Different voltages, i.e. 12 V DC, 24 V ACIDC, 115/240 V ACIDC
- Can be used for a wide range of applications
• Automatic changeover from daylight saving time to winter time
- Reduces maintenance overhead
• Password protection
- Protects your know-how
• 34 integrated, pre-tested functions
- No additional devices, such as elapsed time counter, are required
• Linking of 130 functions is possible
- extensive applications can be implemented without restrictions
• Eight digital inputs (incl. two Als at
12/24 V DC) and four digital outputs on
board |
| |
|
|
| - |
| |
|
|
 |
LOGO! Pure
• Display of message texts, setpoint and actual values as well as direct
modification of the values on the display (except for Pure versions)
- Makes separate display unnecessary
• Integrated data latch
- Protects current values against loss in the event of a power failure
• Flexibly expandable up to 24 Dls, 16 DOs and 8 AOs
- Protects original investment
- Suitable for a wide variety of applications
• Software LOGO! Soft Comfort V4 for userfriendly generation of control programs
on PC; suitable for a variety of operating systems, such as WIN95/98, NT 4.0,
ME, 2000 or XP, MAC OS X 10.2 with J2SE 1.4.1 and Linux with J2SE 1.4.1.
|
| |
|
|
| - |
| |
|
|
|

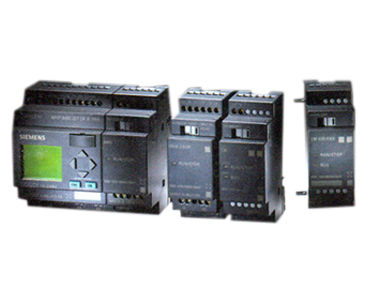

Digital expansion modules
There are four versions for expanding the digital inputs and outputs :
• DM8 230R
- Supply voltage 115/240 V ACIDC
- Four 120/230 V ACIDC digital inputs
- Four digital output relays, 5 A per relay
• DM8 24
- Supply voltage 24 V DC
- Four 24 V DC digital inputs
- Four digital output transistors, 0.3 A
• DM8 12/24R
- Supply voltage 12/24 V DC
- Four 12/24 V digital inputs
- Four digital output relays, 5 A per relay
• DM8 24R
- Supply voltage 24 V ACIDC
- Four 24 V ACIDC digital inputs, PNP or NPN - Four digital output relays, 5 A per relay |
| |
|
|
| - |
| |
|
|
|
Analog expansion modules
There are two versions for expanding the analog inputs :
• AM2
- Supply voltage 12/24 V DC
- Two channels
- 0 to 10 V or 0 to 20 mA typ.
• AM2 PT 100
- Supply voltage 12/24 V DC
- Two channels
- Type PT 100
- Measuring range -50°C to +200 °C |
| |
|
|
| - |
| |
|
|
|
Communications modules
Customized modules are also available for communication :
• CM EIB/KNX (instabus EIB)
- Supply voltage 24 V ACIDC
- max. 16 Dls, 12 DOs, 8 Als as interface
to nstabus EIB
• CM AS-Interface slave
- Supply voltage 12/24 V DC
- 4 Dls/4 DOs as interface to
AS-Interface master
 |
| |
|
|
| - |
| |
|
|
|
|
| |
|
|

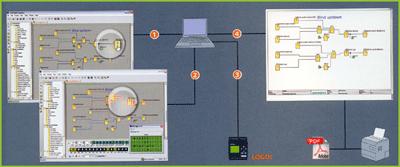

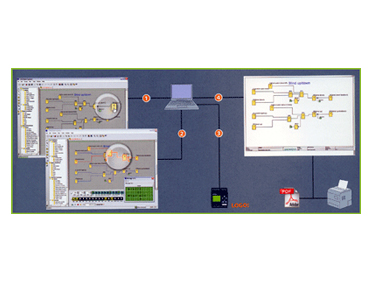

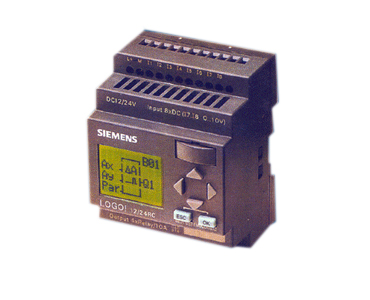

Single Logo! Can Measure & Control |
|
Logo Millions of Applications |
• Distance & Filling Level Measurement • Pressure • Temperature • Motor Spped • High Speed Counting
• Logic Operations • RTC Related Applications |
| |
|
|
| |
|
|
| LOGO! Accessories |
| |
|
|
|
LOGO! PC cable
• The direct connection to and from LOGO
• For easy transmission of LOGO switching programs to and from the PC |
| |
|
|
| |
|
|
|
LOGO! program module
• For duplication
• And for protecting your expertise |
| |
|
|
| |
|
|
|
LOGO! manual
• Detailed operating information
• Description of all integrated functions
• Numerous practical sample applications |
| |
|
| |
|
|
LOGO! Power : the power supply
For effortless conversion of the AC 100/240 V line voltage into the relevant operating voltage
• For all LOGO! 12 V DC units
• And 24 V DC units
• Two versions in each case for different output currents |
| |
|
| |
|
|

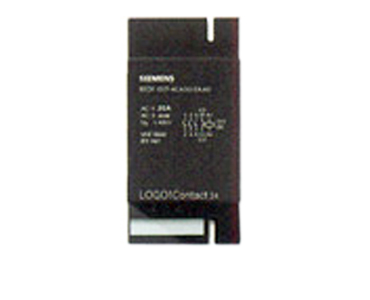

LOGO! Contact
Hum-free switching module
• For switching resistive loads up to 20A
• For direct switching of motors up to 4 kW
• For high performance loads in noise-sensitive
environments |
| |
|
| |
|
|
LOGO! Prom
For duplicating program modules
• Copying modules
• Describing modules by means of LOGO! Soft
Comfort |
| |
|
| |
|
|
Front panel racks
For installation in control cabinet doors
• Front IP 65 (lP 30 without disk)
• 4 WM or 8 WM (optionally with keys) |
| |
|
